NOD Transmission Tiny LCG Gearbox,LCG Transmission,Machined Ultralight LCG Transmission Tiny Gearbox with Slidable Shim for Straight Axle Axial AR44 AR45 Enduro Vanquish F9 F10 (Silver)

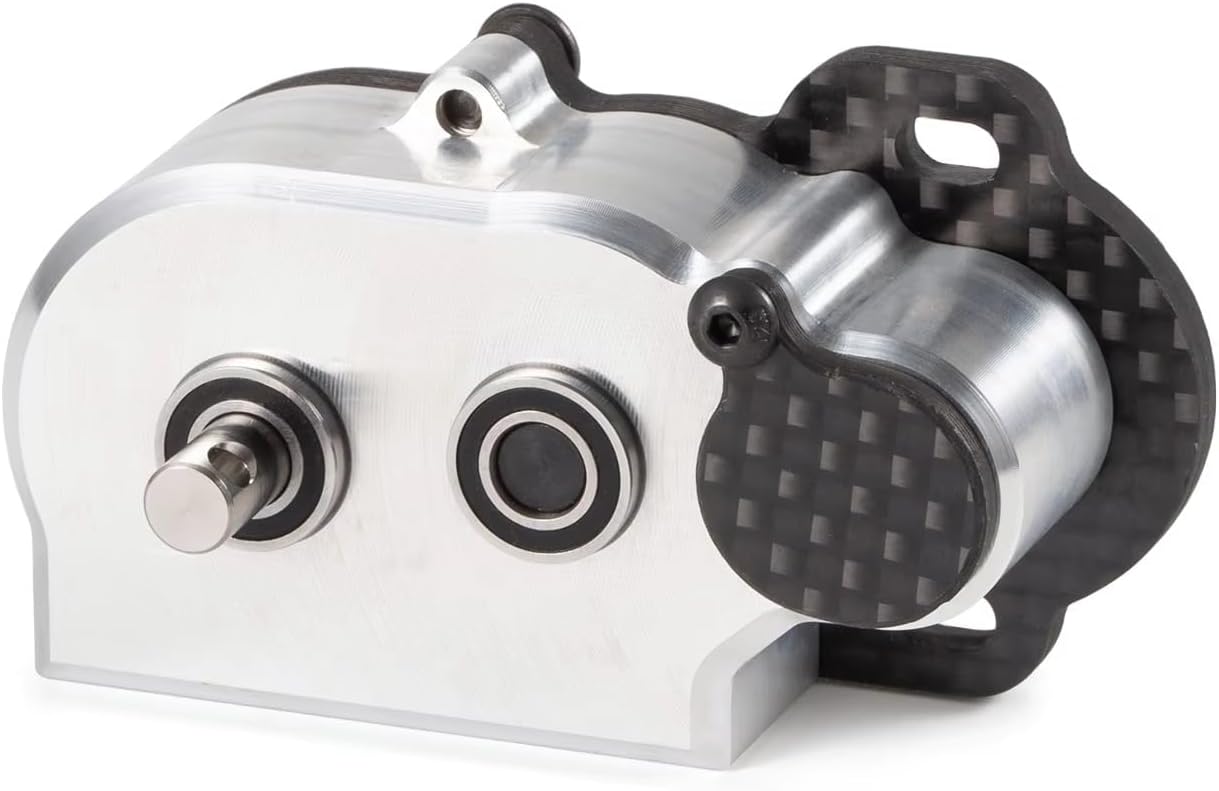

Description Feature: Tiny Transmission for straight axles. CNC machined aluminum case and carbon motor plate. Hardened chromoly gears. Grade 5 Titanium 5mm output shaft. Fully enclosed. Weight: 44g, Ultra-Small and Ultra-Light. Ultra low center of gravity (LCG). Low noise and ultra smooth. Motor bolt holes 25mm on center. Skid plate mounting holes 33mm on center (M3 threaded holes). Comes with an aluminum slidable shim based on the Axial 3 gear type transmission mounting holes. 44T Spur Gear (48 pitch), 4:1 Low gear ratio. Fits 48 Pitch pinions from 11T to 18T (Not Included) Gear Ratio: 11T pinion: 16 12T pinion: 14.67 13T pinion: 13.54 14T pinion: 12.57 15T pinion: 11.73 16T pinion: 11 17T pinion: 10.35 18T pinion: 9.78 Included: 1x Tiny Transmission 1x Slidable Shim 1x Hardware Set

• Ultra-Low Center of Gravity (LCG) Design: Specifically engineered for straight axles, this ultralight transmission weighs only 44g, helping to significantly lower the vehicle’s center of gravity, improving stability and handling on challenging terrains.
• Precision Machined Components: Featuring a CNC-machined aluminum case and carbon motor plate, combined with hardened chromoly gears and a Grade 5 Titanium 5mm output shaft, this transmission offers exceptional strength and durability for high-performance RC applications.
• Adjustable Gear Ratios: Equipped with a 48-pitch 44T spur gear and compatibility with pinions ranging from 11T to 18T, this transmission allows for flexible gear ratio adjustments (from 9.78 to 16), giving users the ability to fine-tune torque and speed based on specific crawling conditions.
• Smooth and Quiet Operation: Designed for low noise and ultra-smooth performance, the transmission ensures seamless driving experiences, even in the most demanding off-road environments.
• Slidable Shim for Flexibility: Comes with an aluminum slidable shim that fits Axial 3-gear type transmission mounting holes, providing additional installation flexibility and allowing easy adjustments to meet various chassis configurations.
